Products on this page (Click on the description to jump to that location):
Space Saver Spanner,
Universal Spanner,
Hydrant Wrench w/Single Spanner,
Hydrant Wrench with Double Spanner,
Storz Hydrant Wrench,
Spanner Wrench Brackets,
Hole Type Spanner, Storz Spanner
Space Saver Spanner by
Reliable Fire
Products
 The
SpaceSaver spanner wrench lives up to it's name. The wrench is plasma cut from 3/16"
steel plate for maximum durability. In other words, it isn't going to
break if you must use the gas cock shutoff feature. And, since it has a
flat profile, several wrenches can fit in the spot that has been set aside for a

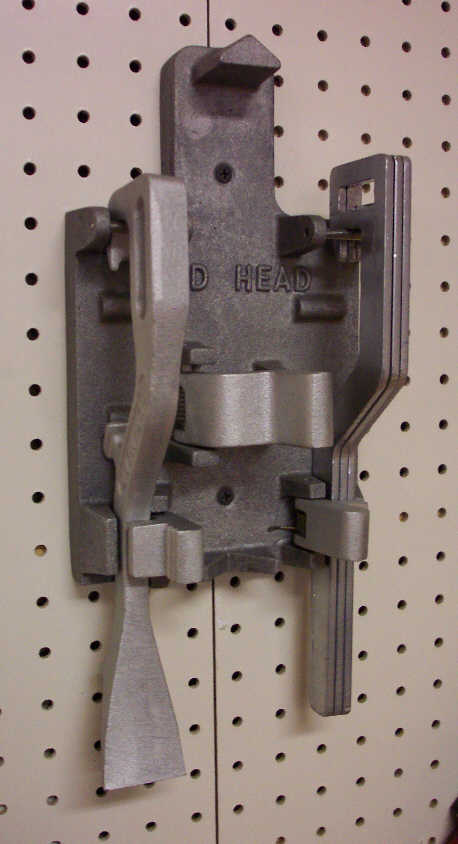

single common spanner. The picture on the right shows that three SpaceSaver spanners will fit in a Red Head spanner bracket position that was
designed to hold a single standard spanner. So, if you have two Red Head
brackets on your apparatus you can now hold twelve spanners in the same space as
four of your current ones.
The SpaceSaver spanner wrench works on 1-1/2" and up to 6" rocker lug type
couplings and adapters.
Red Head Style 101 Universal Spanner
Cast from ALMAG35 aluminum alloy, this is arguably
the toughest of the aluminum spanners we have found. The location of the
gas cock shutoff allows use of the wrench in a more natural position than some
other brands of spanners. This spanner effectively fits 3/4" through 6"
rocker lug and pin lug couplings.
Red Head Style 103 Hole Type Spanner
As with all Red Head Spanners, this one is also cast in ALMAG35 aluminum for
strength. This is a very compact spanner at only 7-1/2" long. And,
since it weighs only 3 ounces, it can easily be carried in a turnout coat pocket
without wearing through the material too soon. This spanner is designed to
be used with 3/4" and 1" booster hose couplings.
Red Head Style 107 Single Spanner
Hydrant Wrench
This hydrant wrench will accommodate pentagon heads up to
1-3/4" in size and square heads up to 1-1/4" across. It is equipped with a
single hook spanner that fits either rocker or pin lugs on couplings and
fittings from 3/4" through 6". You can tell it is a heavy duty wrench
because it weighs in at a full 4 pounds and is 18-1/2 inches long. The end
of the handle is knurled for a secure grip when dealing with stubborn hydrants.
Incidentally, we have heard of people bending the handles
of hydrant wrenches. This should not be a problem with either of the
hydrant wrenches pictured on this page. The handles are made of 1215 ASTM
A575 carbon steel.
Red Head Style 105 Double Spanner
Hydrant Wrench
This wrench is not only equipped with two spanner lugs it is
also designed to fit slightly bigger hydrant nuts. It will accommodate a
1-7/8" pentagon or a 1-1/2" square nut. An additional feature is the
replaceable brass jaw that will absorb rather than inflict damage on the hydrant
nuts. It also features knurling on the end of the handle for a secure
grip. It weighs in at 5 pounds and is 19-1/2 inches long.
Spanner Wrench Brackets

David's stocks two different spanner wrench brackets for
your convenience. The bracket to the left (Red Head style S-146) was
designed to hold two Storz spanners but we have found that it will also fit two
universal spanners or six SpaceSaver Spanners.
The bracket to the right (Red Head style 148-3) is designed
to hold two universal spanners (will hold six SpaceSavers) in addition to either
one of the hydrant wrenches described above.
Red Head SW-3 Storz Hydrant Wrench
|
